We realized world's No.1 lightweight! Maintenance cost were substantially reduced.
The machine can cut steel rods that appear during concrete crushing, due to its special steel rod cutter equipped as a standard part. Still rod cutters use highly economic two-way type cutters. There are three types of swivels. It shows its power for primary crushing, such as building or foundation dismantling.
| Class of excavator |
3~4ton【D-35B】
|
|---|---|
| Other class |
3~4ton 【D-35B】 4~5ton 【D-42】 6~8ton 【D-62】 6~8ton 【D-71】 12~14ton 【D-122】 12~14ton 【D-131】 20～22ton 【D-212】 30～37ton 【D-352】 40～45ton 【D-412】 40～45ton 【D-452】 45～55ton 【D-482】 45～55ton 【D-492】 100ton 【D-1052】 100ton 【D-1082】 100ton 【D-1092】 |
| Working pressure | 24.5MPa |
| Maximum working pressure | 24.5MPa |
| Mass | 240kg |

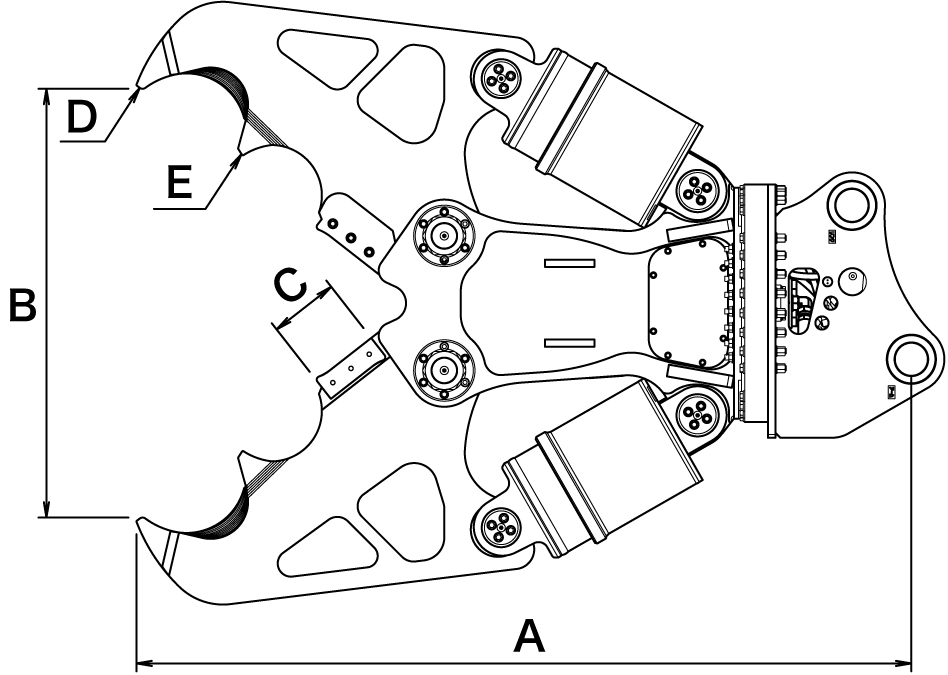

| Size |
A:1000mmB:360mm Max opening C:100mm Cutter length |
| Tip crushing force | D:240kN |
|
Central crushing force |
E:358kN |
Search for the other series
