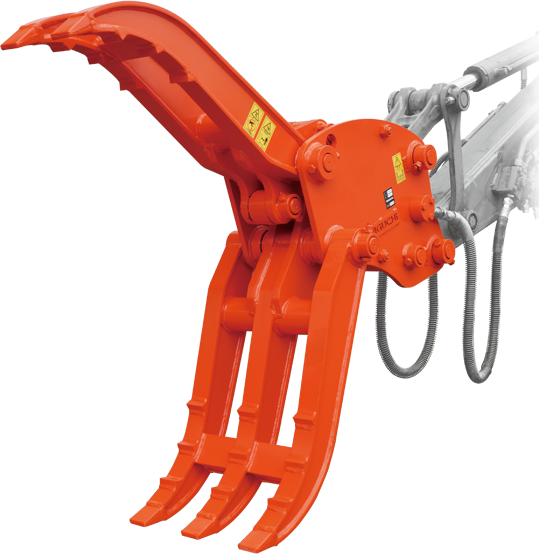

Head-swing Grasper

Head-swing Type Gripper
Head-swing Grasper

A large freedom of gripping angle is realized due to head-swing manipulation.

It can operate from any angle, enabling operation on sites where fix-type machine operation is difficult. Manipulation can be done as for an usual bucket, as claw movement is done by a hydraulic cylinder within the main body. Part change time is greatly reduced due to easy removal by only 2 pins.

Class of excavator

6~8ton【GV-60L】


Swing function (L)



Equipment

Adapter parts
Other class 0.7~1.5ton
【GV-08L】
1.2~3ton
【GV-17L】
3~4ton
【GV-32L】
4~5ton
【GV-40L】
6~8ton
【GV-60L】
12~14ton
【GV-120L】
20~22ton
【GV-202L】
30~37ton
【GV-300L】
40~45ton
【GV-402L】
Maximum working pressure 27.4MPa
Mass 370kg
Size A:1670mm Max opening
B:1360mm Body length
C:470mm Craw width
D:905mm Craw length
