One electric source for powerful drive of various hydraulic equipments.

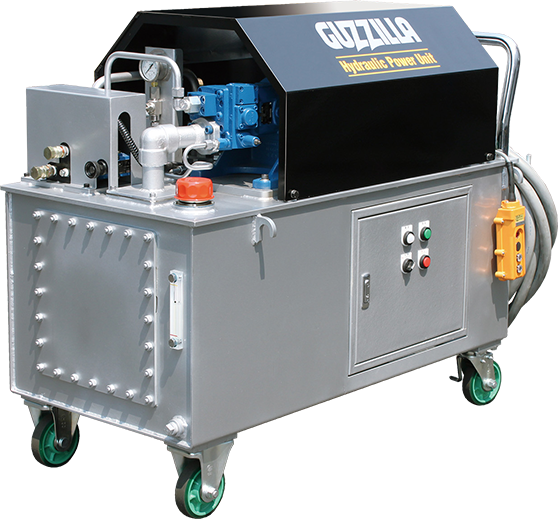

A hydraulic unit driven by a compact high-power electric motor. Easy to transport for indoor- or outdoor-use. It is best for driving or test-driving of all types of hydraulic units, starting with attachments.
| Class of excavator |
GHU-18
|
|---|---|
| Maximum pressure | 34.3MPa |
| Mass | 650kg |

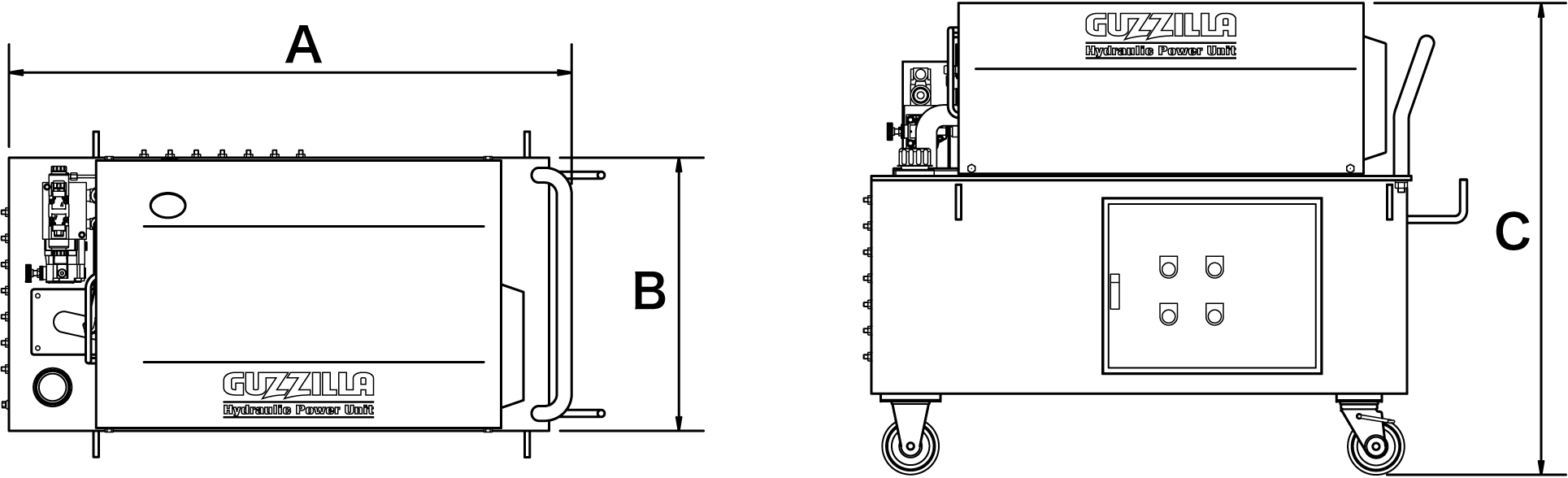

| Size |
A:1360mm Full lengthB:750mm Full width C:1180mm Height |
| Discharge amount[L/min] | 40 / 50 （50 /60Hz） |
|
Electric motive power |
AC200V 50/60Hz Phase 3 |
| Working oil | ISO VG32~46quite |
| tank capacity | 120L |
