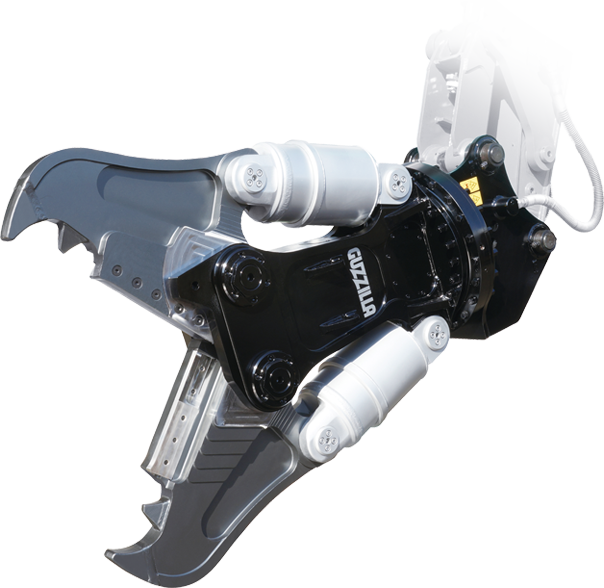

A versatile machine mainly for SRC structure demolition!
TAGUCHI's original, strong cylinder structure has achieved the largest opening width in its class. It is a versatile machine that is convenient for any work such as SRC structure demolition, steel frame cutting, large-scale work. All blades up to the tip of the blade holder allow easy maintenance by simply replacing the blade.
| Class of excavator |
12~14ton【D-SRC-132】
|
|---|---|
| Other class |

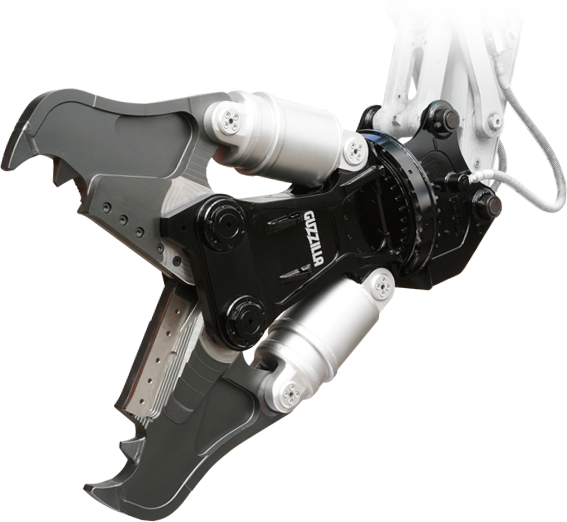

12~14ton 【D-SRC-132】 20～22ton 【D-SRC-211】 |
| Working pressure | 31.4MPa |
| Maximum working pressure | 34.3MPa |
| Mass |
[F]1520kg [S]1520kg [A]1520kg |

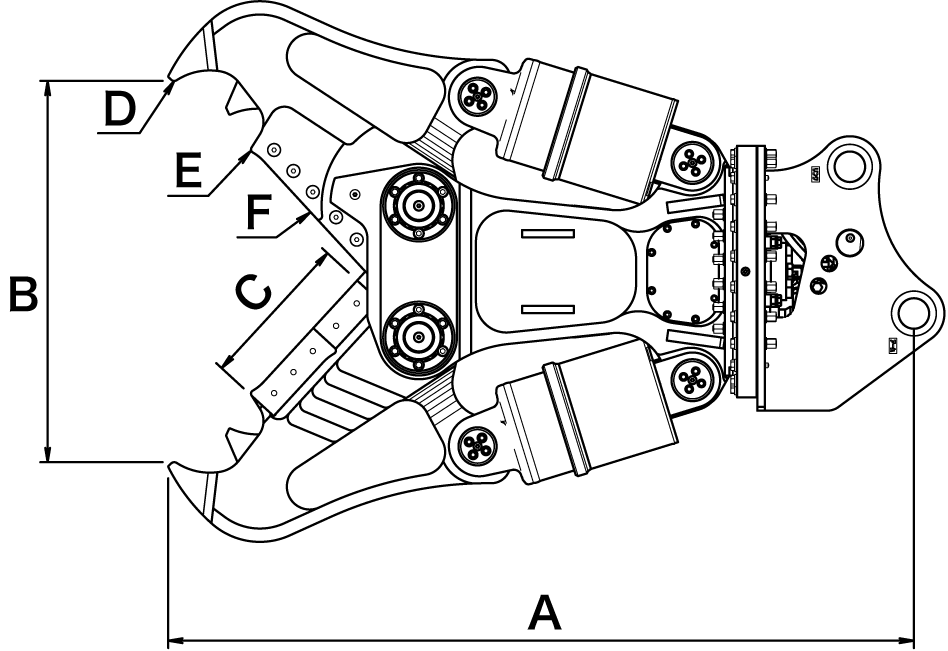

| Size |
A:1950mmB:1000mm Max opening C:410mm Cutter length |
| Tip crushing force | D:709kN |
| Tip cutting force of blade | E:1050kN |
| Central cutting force of blade | F:1640kN |
