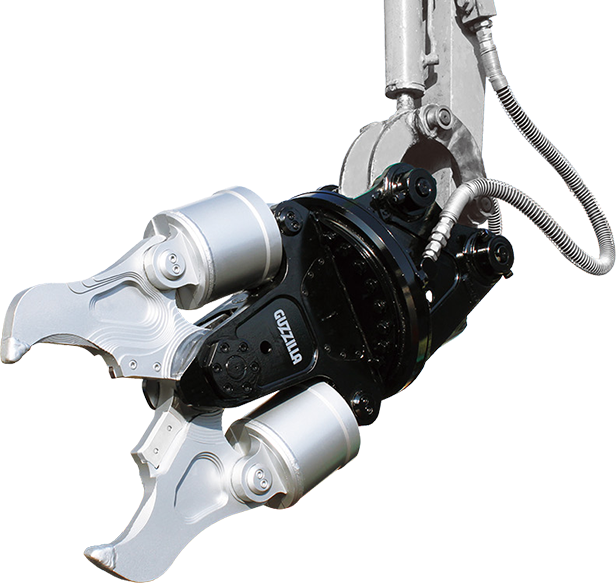

The new lineup contains a set of various types.
Easy operation is possible from cutting to separate collection, due to primary crusher for all types of concrete and to special steel cutter equipped as a standard part. Steel bar & frame cutter is of a highly economical 2-way type. There are three types of swivels. New lineup from 1 to 2.5 tons!
| Class of excavator |
2～2.5ton【DF-22】
|
|---|---|
| Other class |
1~1.5ton 【DF-12】 2～2.5ton 【DF-22】 |
| Working pressure | 20.6MPa |
| Maximum working pressure | 20.6MPa |
| Mass | 140kg |
| Size |
A:840mmB:285mm Max opening C:140mm Cutter length |
| Tip crushing force | D:186kN |
|
Central cutting force |
E:274kN |
Search for the other series
