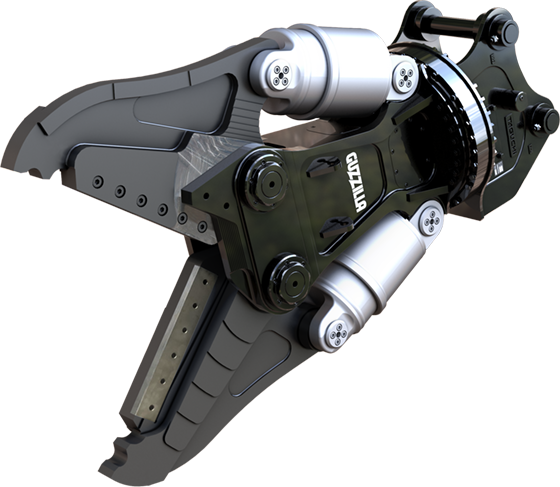

The definitive edition of a steel frame/rebar cutting machine!
A new type cutter that dramatically improves the work efficiency of cutting rebar and steel structures. Cut powerfully with twin cylinder and special steel blade.
| Class of excavator |
12~14ton【DMP-135】
|
|---|---|
| Other class |
12~14ton 【DMP-135】 20~22ton 【DMP-202】 30~37ton 【DMP-352】 40~55ton 【DMP-452】 |
| Maximum working pressure | 31.4MPa |
| Mass |
[S]1530kg [A]1530kg |
| Size |

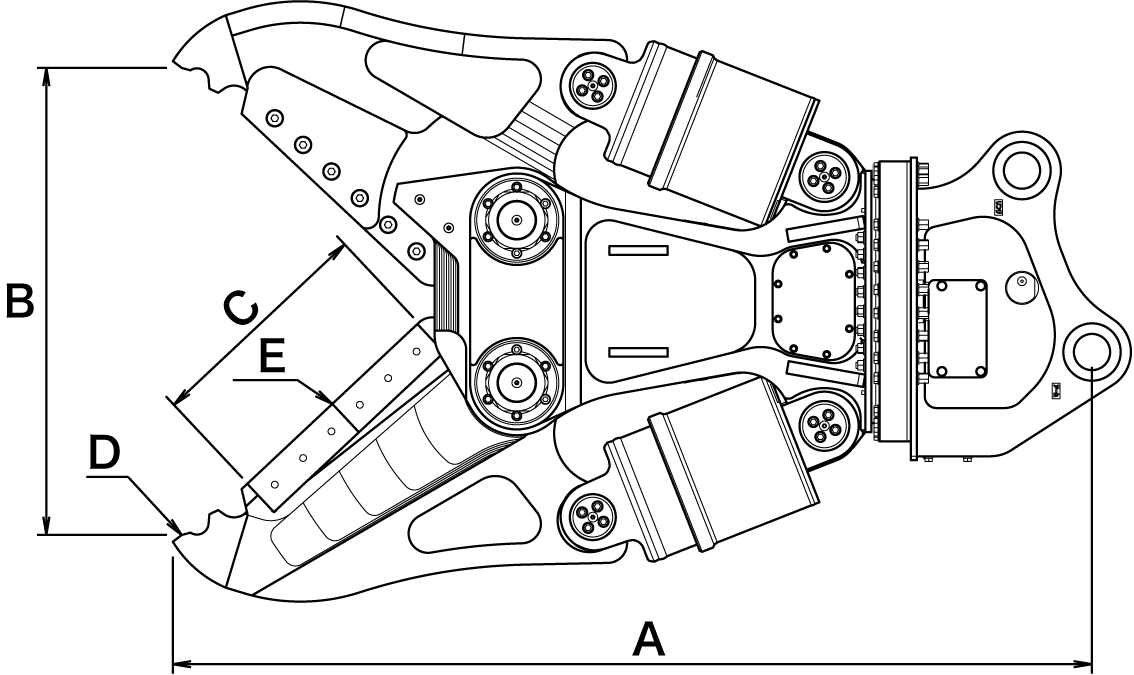

A:1980mm B:1000mm Max opening C:250+250mm Cutter length(bottom side + tip side) |
| Tip crushing force | D:595kN |
|
Central cutting force |
E:1100kN |
Search for the other series
