We realized the industry top-class cutting power and lightweight.

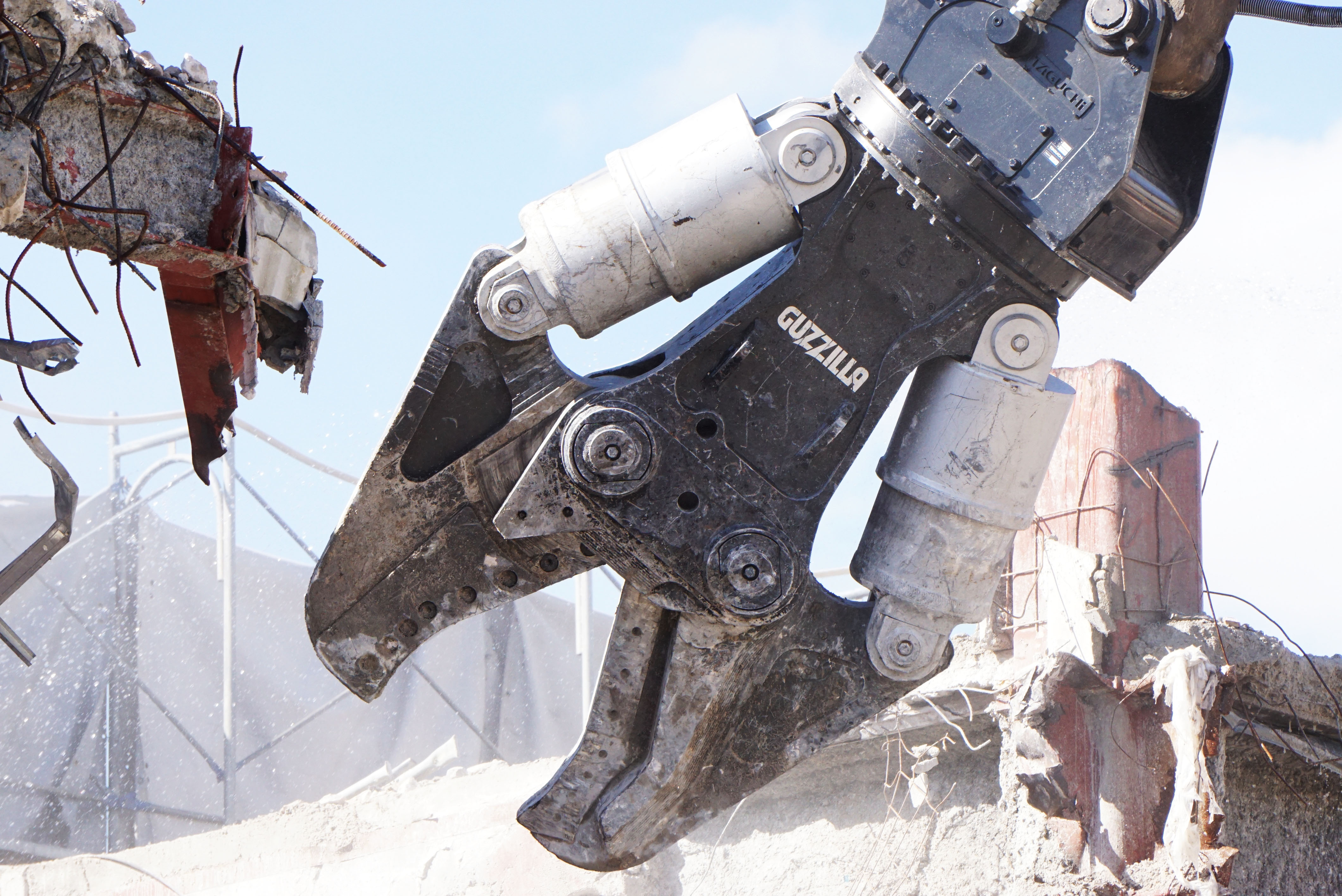

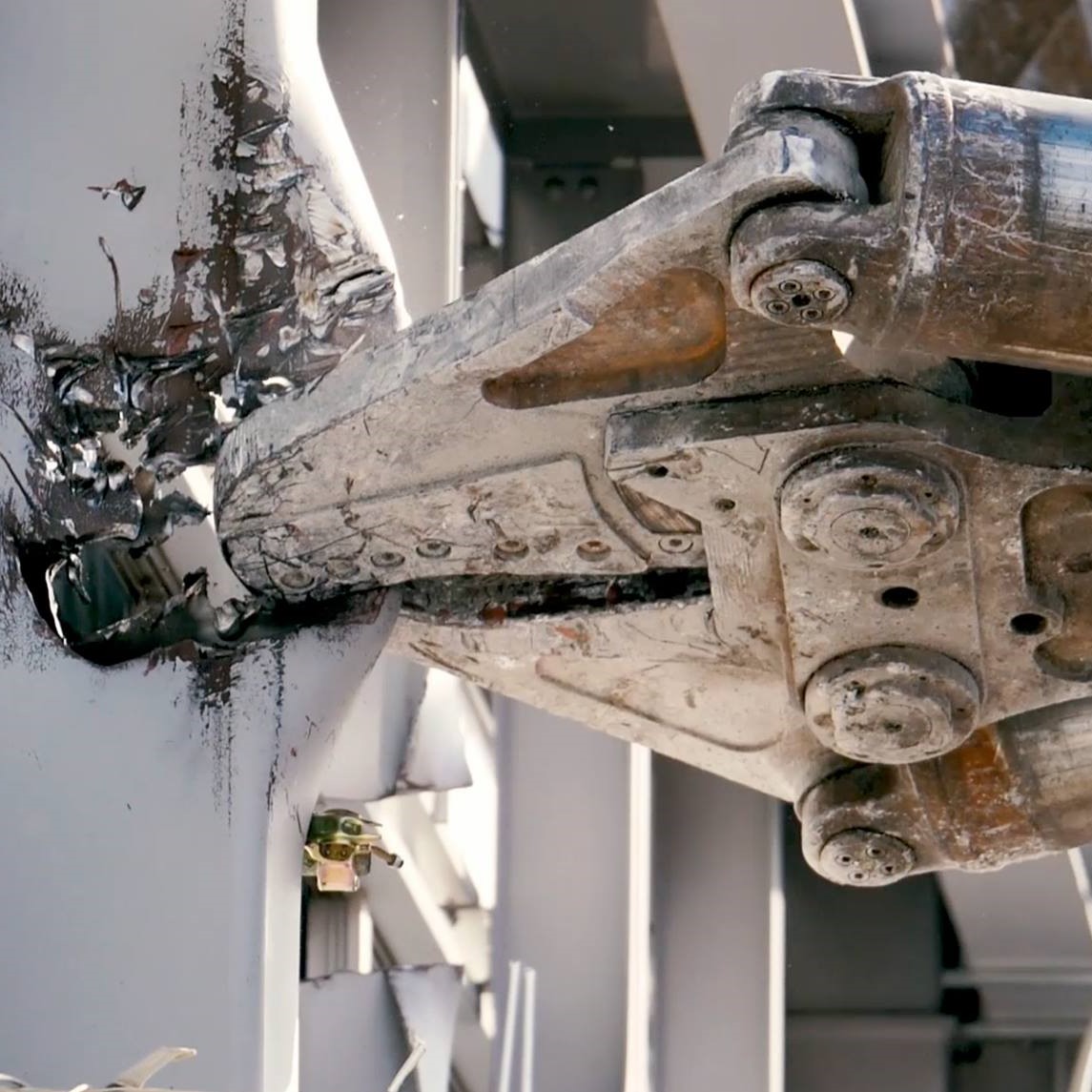

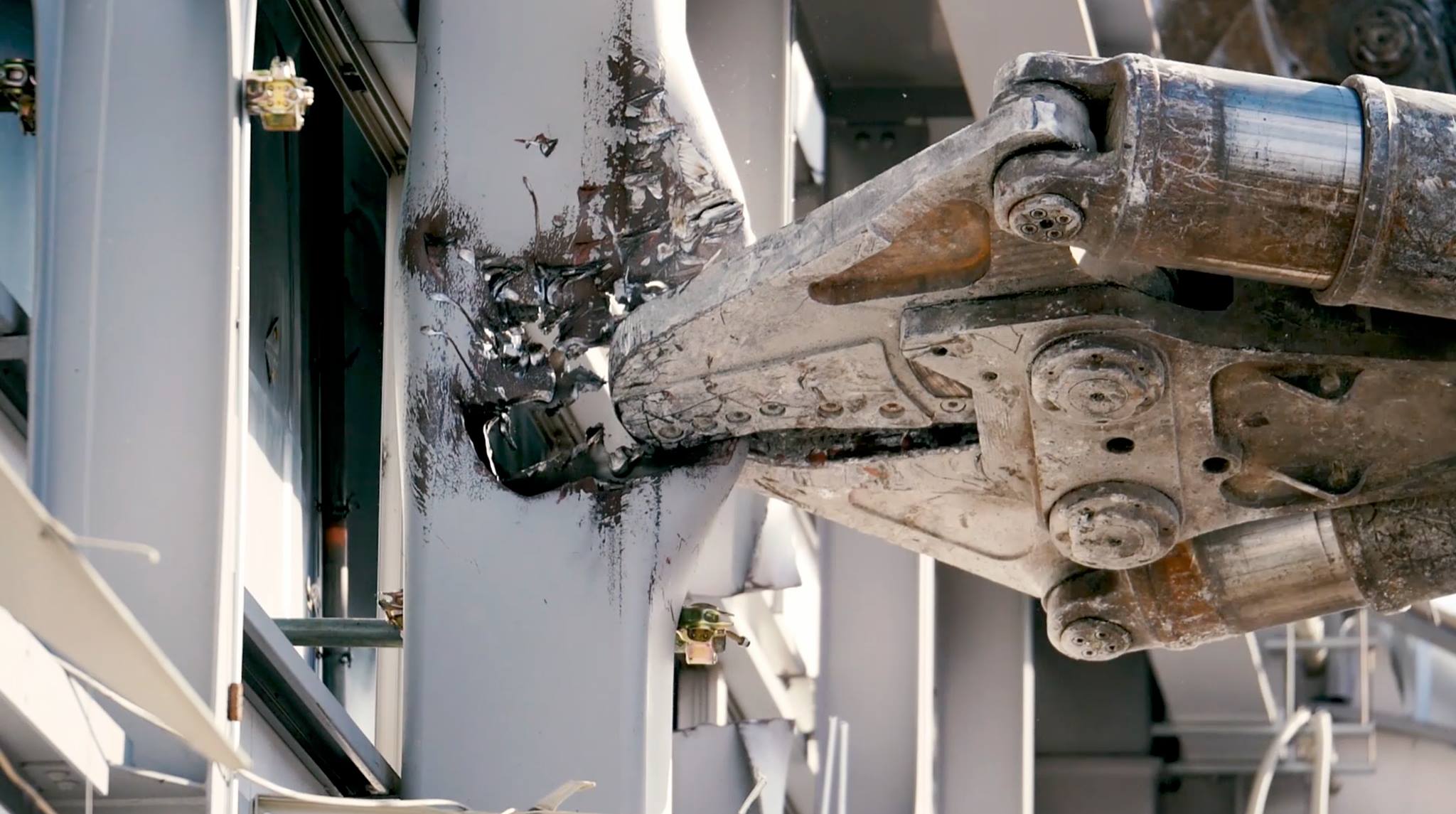

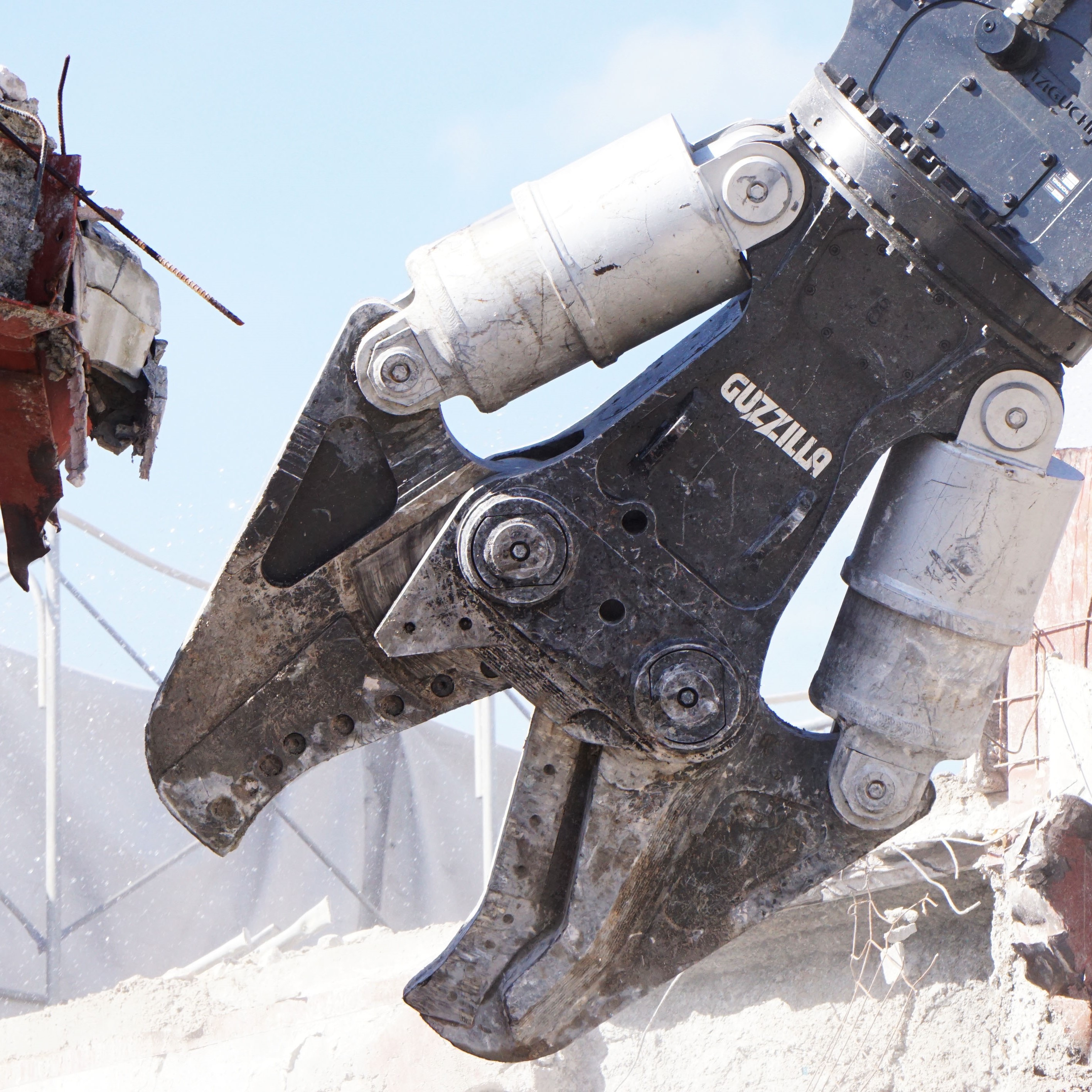

An extraordinary cutting power, which can cut and crush steel-frame and reinforced-steel-rod concrete constructions delivers excellent work efficiency in any demolition site. The two crushing Jaws are synchronized by using synchronized links to realize enhanced crushing power. We use a special steel for exclusive use of GUZZILLA cutter.
| Class of excavator |
3~4ton【DSX-32】
|
|---|---|
| Other class |
3~4ton 【DSX-32】 4～5ton 【DSX-40】 6～8ton 【DSX-60】 12～14ton 【DSX-132】 20～22ton 【DSX-202】 30～37ton 【DSX-302】 3~4ton 【DX-32】 4～5ton 【DX-42】 6～8ton 【DX-62】 12～14ton 【DX-132】 20～22ton 【DX-202】 30～37ton 【DX-302】 40～45ton 【DX-402】 |
| Maximum working pressure | 24.5MPa |
| Mass | 330kg |

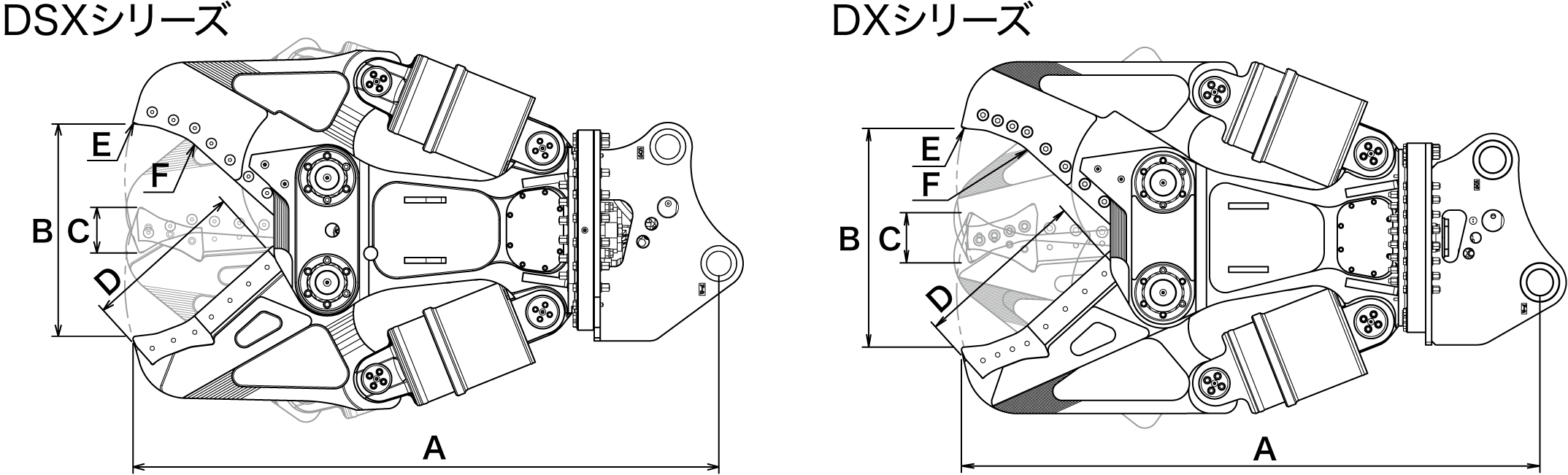

| Size |
A:1120mmB: 225mm Max opening C: -95mm Minimum Opening width D: 165+103mm Cutter length（bottom side + tip side） |
| Tip crushing force | E:245kN |
|
Central cutting force |
F:372kN |
