GUZZILLA Primary Crusher DX-SRC

Twin Cylinder SRC Cutter・Primary Crusher
【2020 new products】

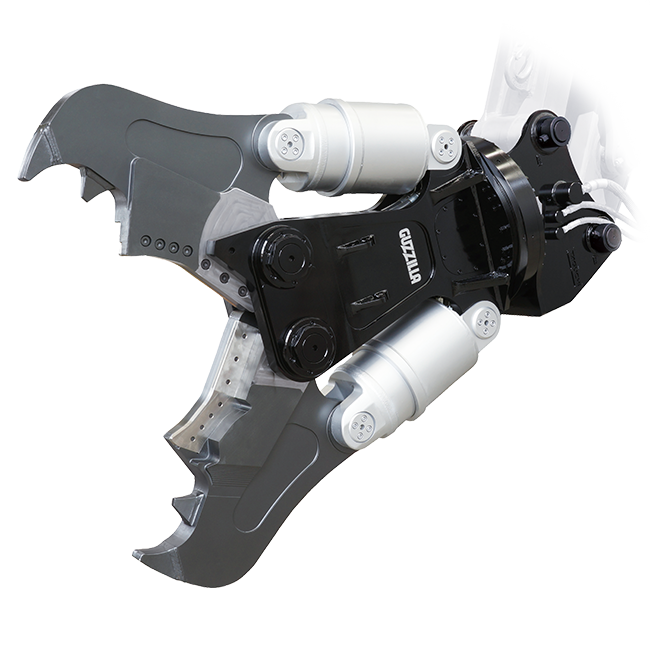

GUZZILLA Primary Crusher DX-SRC

Introducing New Ultimate Hybrid Model of GUZZILLA Cutter and Primary Crusher.

In addition to crushing work with the carved-out arm with even higher strength, the X-shaped blade also strongly cuts the steel frame contained in the SRC structure!With a special shape that firmly bites into the object, it is designed to make it easier to catch the object among the many TAGUCHI cutter series. It also combines the biggest features of the GUZZILLA series: “lightweight”, “wide opening width”, and “high power”.

The technology cultivated with the DS cutter is generously installed. The X-shaped blade cuts SRC structure.
Wide opening width (one of the largest in the industry) enables work equivalent to one class higher.
Primary crushing and Cutting! Achieves comfortable work with the industry's top class wide opening width.
The blades use 2 surfaces on the tip and 4 surfaces on the root side.

Class of excavator	30~37ton【DX-SRC-352】 [S]Hydraulic swivel [A]Automatic swivel Equipment Synchronous links Accelerated valve Double speed Twin cylinder Large cylinder Adapter parts Two-sided use type Tetrahedral use type AT (A only )
Working pressure	31.4MPa
Maximum working pressure	34.3MPa
Mass	[S]3870kg [A]3870kg

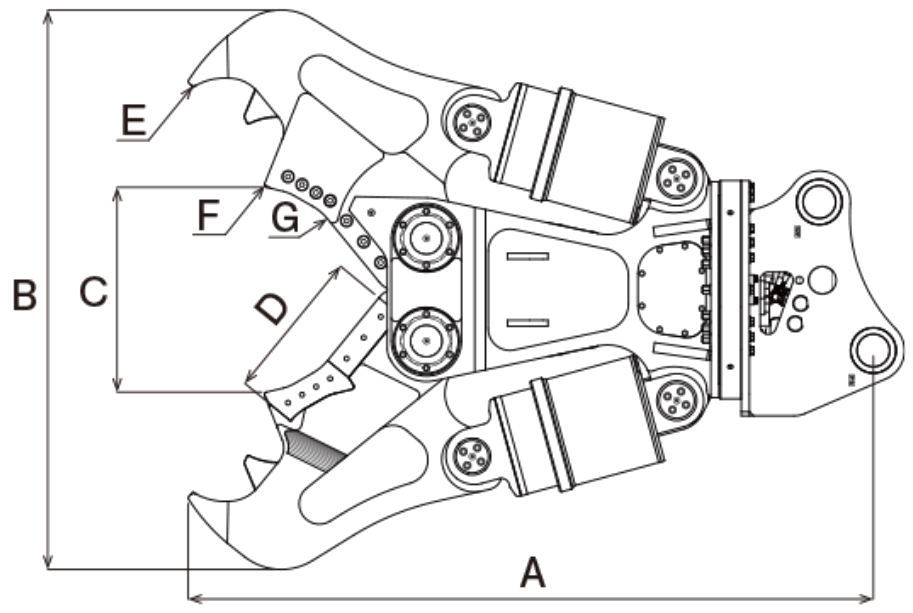

Size	A:2540mm B:1510mm Max opening C:760mm Blade max opening D:560mm Blade length
Tip crushing force	E:1460kN
Tip cutting force of blade	F:2090kN
Central cutting force of blade	G:3450kN
