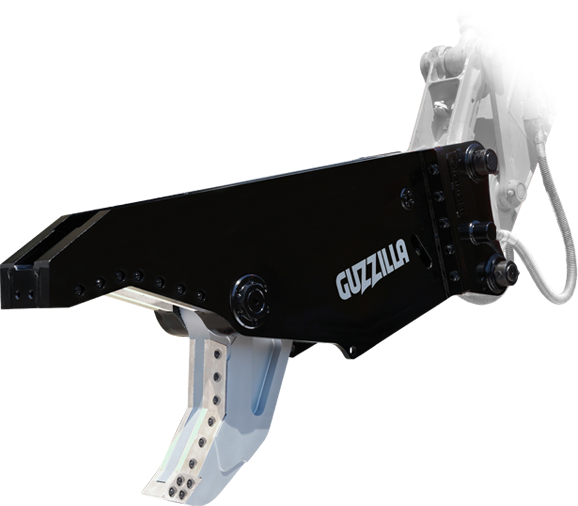

Optimal cutter for waste plastic
It's large opening width and sharp cutter blade allow a smooth cut. High-rigidity special steel cutter easily cuts blue sheets or even fishing nets. There are two types of swivels. Acceleration valve is standard equipment for each of the classes.
| Class of excavator |
20~22ton【GSE-200】
|
|---|---|
| Other class |
12~14ton 【GSE-120】 20~22ton 【GSE-200】 |
| Maximum working pressure | 31.4MPa |
| Mass |
[S]1540kg [A]1540kg [L]1570kg |
| Size |
A:[S]2360mm [A]2360mm [L]2210mmB:750mm Max opening C:555mm Cutter length |
| Tip cutting force | D:[S]461kN [A]461kN [L]458kN |
|
Central cutting force |
E:[S]862kN [A]862kN [L]857kN |
Search for the other series
