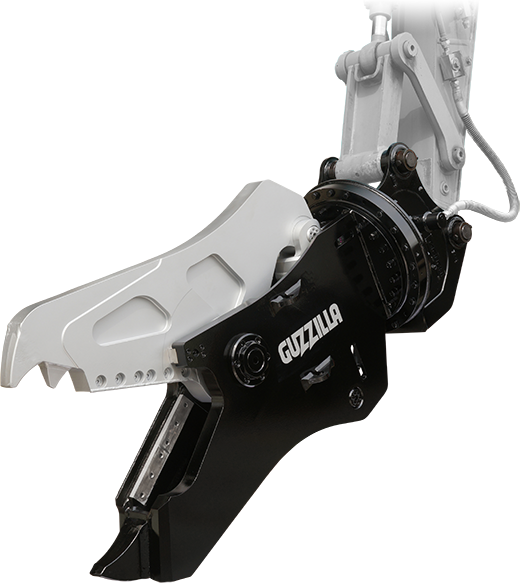

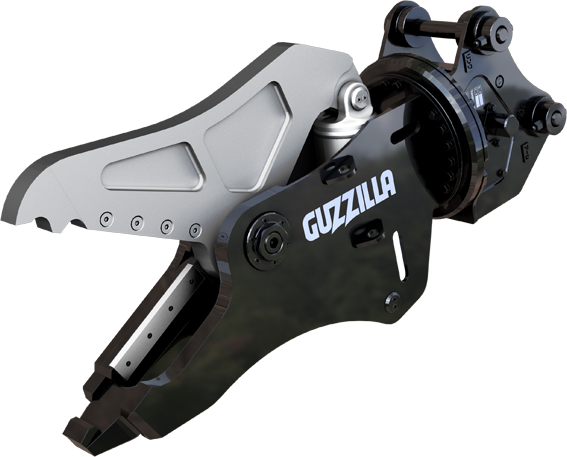

Single cylinder cutter for easy maintenance
TAGUCHI's simple shape makes maintenance easier. Demonstrates its power in the demolition of reinforced concrete structures and rebar/steel frame structures. All classes of the lightweight "B series" are equipped with IC chips.
| Class of excavator |
3~5ton【MP-35B】
|
|---|---|
| Other class |
3~5ton 【MP-35B】 6~8ton 【MFP-62B】 12~14ton 【MFP-122B】 20~22ton 【MFP-202B】 |
| Working pressure | 24.5MPa |
| Maximum working pressure | - |
| Mass |
[S]240kg [A]240kg |
| Size |

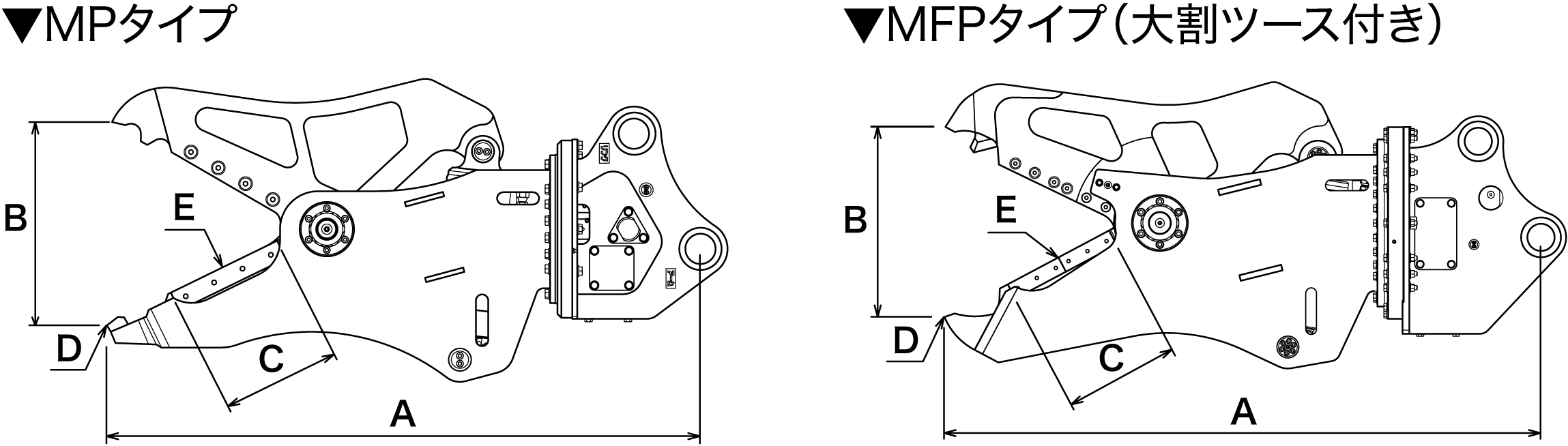

A:1200mmB:415mm Max opening C:240mm Cutter length |
| Tip crushing force | D:157kN |
|
Central cutting force |
E:336kN |
Search for the other series
