MAG・GON Grasper

Lifting Magnet Grasper

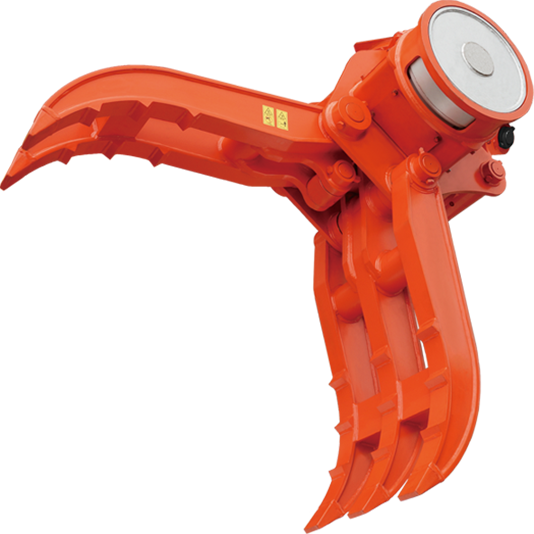

MAG・GON Grasper


Equipped with a convenient hydraulic power generation magnet on Grasper.

TAGUCHI product "Grasper", which boasts the top share of gripping machine, and hydraulic power generation magnet "MAG・GON" are combined. Lineup includes a head-swing type with a magnet on the tip of the toe and a full swivel type attached to the side of the swing frame. Since it is equipped with a hydraulic power generation magnet, there is no need for electric wiring to the hydraulic excavator, and the base machine is not limited.

Class of excavator

20~22ton
【GV-202SDM5A】



Equipment

Magnet Adapter parts
Other class 20~22ton
【GV-202LDM5A】
20~22ton
【GV-202SDM5A】
Maximum working pressure 34.3MPa
Recommended flow rate 200L/min
Mass 1940kg
Size A:2260mm Max opening
B:2260mm Body length
C:1260mm Craw length
695mm Claw width
Magnet Diameter φ500mm
Magnet working rate 60%ED(cycle period; turn electricity 6min. off 4min.)
Magnet electric consumption 1.0kw
Max.lifting mass Pig Iron120kg, Steel Cut Wastes90kg, Cut Wastes25kg
