Total Swivel MAG・GON

Total swivel magnet by hydraulic power generation

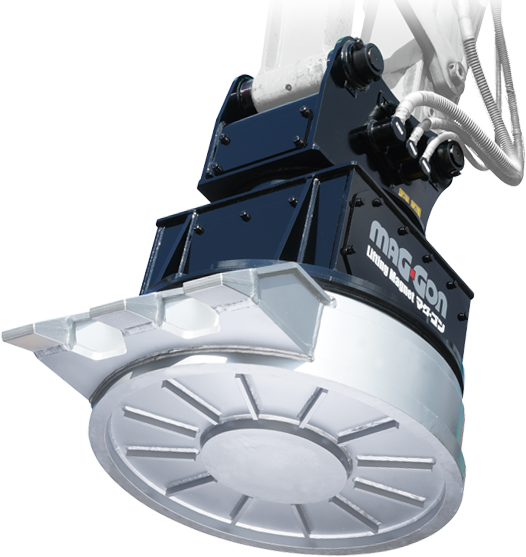

Total Swivel MAG・GON

Magnet swivels without wiring!

Fully swiveling type is now available in the hydraulic power generation magnet "MAG・GON" that works immediately without electrical wiring! Since the magnet part swivels, you can freely change the orientation of long rebars. Work efficiency of scrap/rebar collection work at the dismantling site and loading/unloading work at the scrap processing site is further improved. Easy to pick up and release.

Class of excavator

6~8ton【GM-60S】


Total Swivel (S)



Equipment

Magnet Adapter parts
Other class 6~8ton
【GM-60S】
12~14ton
【GM-120S(φ700)】
12~14ton
【GM-120S(φ900)】
20~22ton
【GM-200S】
Use Hydraulic 20.6MPa
Mass 750kg
Required flow rate 19L/min

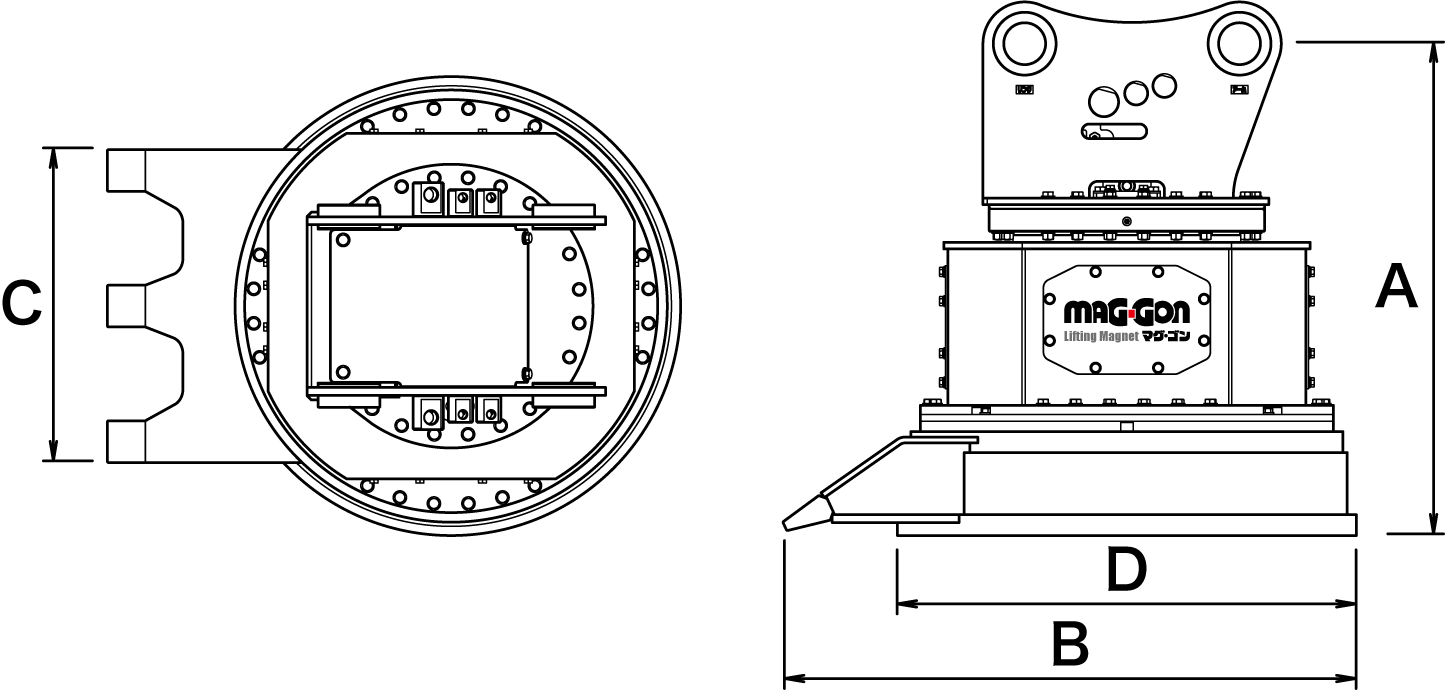

Size A:900mm Full Height
B:890mm Dimension
C:500mm Claw width
D:φ700mm Magnet Diameter
Duty Cycle 60%ED(cycle period; turn electricity 6min. off 4min.)
Power Consumption 3.3kW
Max. Lifting Mass Pig Iron350kg, Steel Cut Wastes200kg, Cut Wastes100kg
