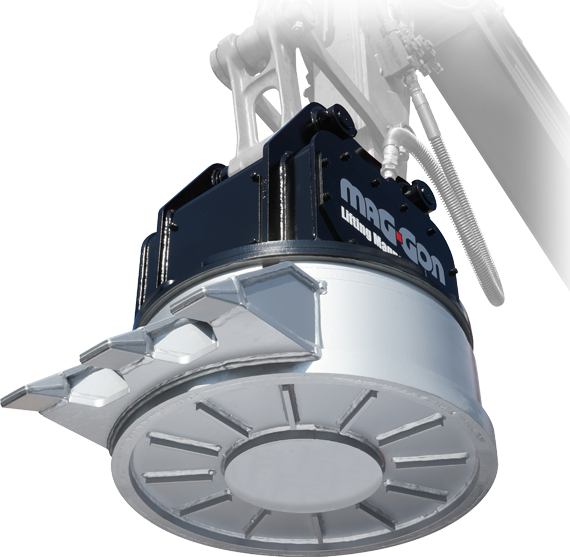

Best for collection, loading and unloading of steel frames.
It can do great jobs in loading and unloading work on scrap sites and collecting of scrap and rebars on demolition sites. No electrical wire routing is necessary, only ducts for breakers. Easy manipulation of the hydraulic shovel for grip and release can be done by foot pedal.
| Class of excavator |
6~8ton【GM-60】
|
|---|---|
| Other class |
4~5ton 【GM-40】 6~8ton 【GM-60】 12~14ton 【GM-120】 20-22ton 【GM-200】 |
| Use Hydraulic | 17.6MPa |
| Mass | 680kg |
| Required Flow Rate | 19L/min |
| Size |
A:775mm Full HeightB:900mm Dimension C:500mm Claw width D:φ700mm Magnet Diameter |
| Duty Cycle | 60%ED |
| Power Consumption | 3.3kW |
| Max. Lifting Mass | Pig Iron350kg, Steel Cut Wastes200kg, Cut Wastes100kg |
